Product Summary
The LM60CIM3X is a precision integrated-circuit temperature sensor that can sense a -40℃ to +125℃ temperature range while operating from a single +2.7V supply. The LM60CIM3X’s output voltage is linearly proportional to Celsius (Centigrade) temperature (+6.25 mV/℃) and has a DC offset of +424 mV. The offset allows reading negative temperatures without the need for a negative supply. The nominal output voltage of the LM60CIM3X ranges from +174 mV to +1205 mV for a -40℃ to +125℃ temperature range. The applications of the LM60BIM3X include Cellular Phones, Computers, Power Supply Modules, Battery Management, FAX Machines, Printers, HVAC, Disk Drives, Appliances.
Parametrics
LM60CIM3X absolute maximum ratings: (1)Supply Voltage: +12V to -0.2V; (2)Output Voltage: (+V S + 0.6V) to -0.6V; (3)Output Current: 10 mA; (4)Input Current at any pin: 5 mA.
Features
LM60CIM3X features: (1)Calibrated linear scale factor of +6.25 mV/℃; (2)Rated for full -40℃ to +125℃ range; (3)Suitable for remote applications; (4)Available in SOT-23 and TO-92 packages

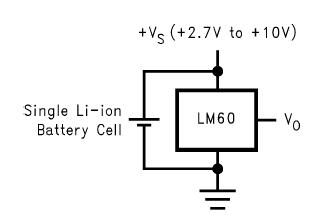

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM60CIM3X |
National Semiconductor (TI) |
Board Mount Temperature Sensors |
Data Sheet |
|
|
||||||||||||
 |
LM60CIM3X/NOPB |
National Semiconductor (TI) |
Board Mount Temperature Sensors |
Data Sheet |
|
|
||||||||||||
