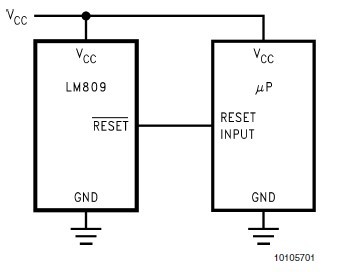

LM810M3X-4.00

3-Pin, Microprocessor Reset Circuits, SOT-23, 140ms min, Low Supply Current 15μA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 10000 :	0.05 / Piece
10000 ~ 50000 :	0.00 / Piece

PartNumber:: LM810M3X-4.00

Brand:: National Semiconductor - NS | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Jolin's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-04

From Other Seller

Part Number:LM810M3X-4.00
US $0.00 - 0.05
Quantity:

piece

Product Summary

The LM810M3X-4.00 microprocessor supervisory circuit can be used to monitor the power supplies in microprocessor and digital systems. It provides a reset to the microprocessor during power-up, power-down and brown-out conditions. The function of the LM810M3X-4.00 is to monitor the VCC supply voltage, and assert a reset signal whenever this voltage declines below the factory-programmed reset threshold. The reset signal remains asserted for 240ms after VCC rises above the threshold. The LM810M3X-4.00 has an active-low RESET output. Seven standard reset voltage options are available, suitable for monitoring 5V, 3.3V, and 3V supply voltages. With a low supply current of only 15μA, the LM810M3X-4.00 is ideal for use in portable equipment. The LM810M3X-4.00 is available in the 3-pin SOT23 package and in the 6-Lead LLP package.

Parametrics

LM810M3X-4.00 absolute maximum ratings: (1)VCC: -0.3V to 6.0V; (2)RESET, RESET: -0.3V to (VCC+ 0.3V); (3)Input Current, VCC Pin: 20mA; (4)Output Current, RESET, RESET, Pin: 20mA; (5)Rate of Rise, VCC: 100V/μs; (6)ESD Rating (Note 2): 2kV; (7)Continuous Power Dissipation: 320mW; (8)Ambient Temperature Range: -40℃ to +105℃; (9)Maximum Junction Temperature: 125℃; (10)Storage Temperature Range: -65℃ to +160℃; (11)Lead Temperature (soldering, 10sec): +300℃.

Features

LM810M3X-4.00 features: (1)Precise monitoring of 3V, 3.3V, and 5V supply voltages; (2)Superior upgrade to MAX809/810; (3)Fully specified over temperature; (4)140ms min. Power-OReset pulse width, 240ms typical, Active-low RESET Output; (5)Guaranteed RESET Output valid for VCC≥1V; (6)Low Supply Current, 15μA typ.; (7)Power supply transient immunity.
