Product Summary
The LMV331M5X is a General-purpose low voltage comparator. It can operate with a supply voltage ranging from 2.7 to 5 V, and exhibits a low current consumption. This LMV331M5X is a perfect choice for low-voltage applications. The applications of the LMV331M5X include Mobile phones, Notebooks and PDAs, Battery supplied electronics, General-purpose portable devices and General-purpose low voltage applications.
Parametrics
LMV331M5X absolute maximum ratings: (1)VCC, Supply voltage: 5.5 V; (2)VID, Differential input voltage: ± 5.5 V; (3)VIN, Input voltage range: (VCC-) - 0.3 to (VCC+) + 0.3 V; (4)Rthja, Thermal resistance junction to ambient: 205℃/W; (5)Rthjc, Thermal resistance junction to case: 172℃/W; (6)Tstg, Storage temperature: -65 to +150℃; (7)Tj,Junction temperature: 150℃; (8)TLEAD, Lead temperature (soldering 10 seconds): 260℃; (9)ESD, Human body model (HBM): 2000V; (10)Latch-up immunity: 200 mA.
Features
LMV331M5X features: (1)Supply operation from 2.7 to 5 V; (2)Low current consumption: 20 μA; (3)Input common mode range includes ground; (4)Wide temperature range: -40 to +85℃; (5)Low output saturation voltage; (6)Propagation delay: 200 ns; (7)Open drain output; (8)ESD tolerance: 2 kV HBM/200 V MM; (9)SMD packages: SC70-5 and SOT23-5.

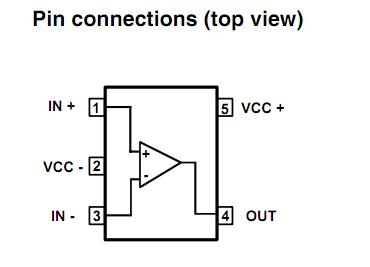

Diagrams
