Product Summary
The LMV710M5X is a single BiCMOS operational amplifiers designed to meet the demands of low power, low cost, and small size required by battery-powered portable electronics. The LMV710M5X has an input common-mode voltage range that exceeds the rails, rail-to-rail output, and high output-current drive. The devices offer a bandwidth of 5 MHz and a slew rate of 5 V/ µ s. The applications of the LMV710M5X are Wireless Phones, Mobile Phones, PDAs, GSM/TDMA/CDMA Power Amp Control, AGC, RF Power Detectors, Temperature Compensation, Wireless LANs, Bluetooth, HomeRF.
Parametrics
LMV710M5X absolute maximum ratings: (1)Supply voltage:6V; (2)Differential input voltage:±6V; (3)Input voltage (either input): V CC- - 0.4 to V CC+ + 0.4 V; (4)Output voltage: V CC- - 0.4 to V CC+ + 0.4 V; (5)Input current:±10 mA.
Features
LMV710M5X features: (1)2.7-V and 5-V Performance; (2)Low Offset Voltage: 0.4 mV Typ, 3 mV Max; (3)Input Common-Mode Range: 200 mV; (4)Beyond the Rails; (5)Rail-to-Rail Swing Into 600 Ω; (6)Gain Bandwidth: 5 MHz Typ; (7)Slew Rate: 5 V/ μ s Typ; (8)Turn-On Time From Shutdown: <10 μ s; (9)Shutdown Current: 0.2 μ A Typ.

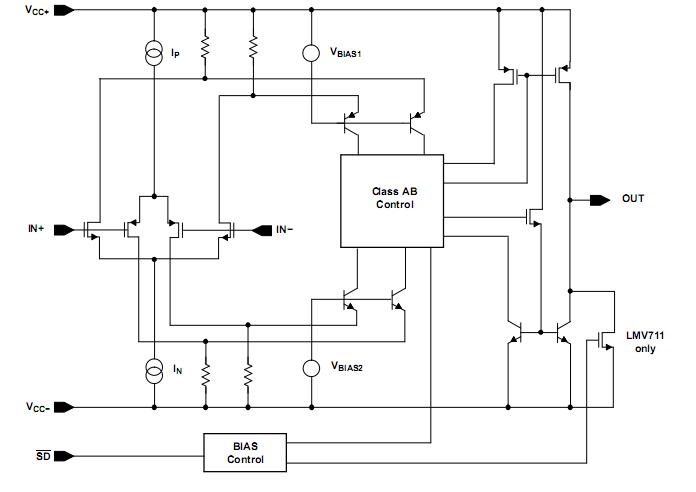

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LMV710M5X |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
|||||||||||||
LMV710M5X/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
