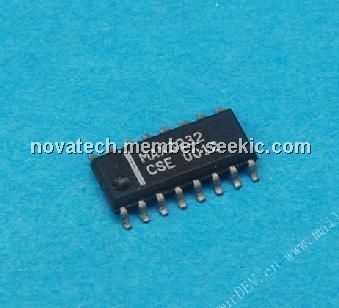

MAX3232

rs-232 line driver/receiver , 3-V to 5.5-V, 16-SOIC, 300 μA, 0.1 μF, MAX3232

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~50.00

PartNumber:: MAX3232

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jolin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-07

From Other Seller

Part Number:MAX3232
US $1.00 - 50.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX3232 is a 3-v to 5.5-v multichannel rs-232 line driver/receiver with ±15-kv iec esd protection. It consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV IEC ESD protection pin to pin (serial-port connection pins, including GND). The MAX3232 meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The MAX3232 is used in Battery-Powered Systems, PDAs, Notebooks, Laptops, Palmtop PCs, Hand-Held Equipment.

Parametrics

MAX3232 absolute maximum ratings: (1)VCC Supply voltage range: –0.3 to 6 V; (2)V+ Positive output supply voltage range: –0.3 to 7 V; (3)V– Negative output supply voltage range: 0.3 to –7 V; (4)V+ – V– Supply voltage difference: 13 V; (5)VI Input voltage range: –25 to 25 V; (6)VO Output voltage range: –0.3 to VCC + 0.3 V; (7)TJ Operating virtual junction temperature: 150 ℃; (8)Tstg Storage temperature range: –65 to 150 ℃.

Features

MAX3232 features: (1)ESD Protection for RS-232 Bus Pins; (2)Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards; (3)Operates With 3-V to 5.5-V VCC Supply; (4)Operates up to 250 kbit/s; (5)Two Drivers and Two Receivers; (6)Low Supply Current: 300 μA Typ; (7)External Capacitors: 4 × 0.1 μF; (8)Accepts 5-V Logic Input With 3.3-V Supply.
