Product Summary
The MAX4173TEUT a low-cost, precision, high-side current-sense amplifier for portable PCs, telephones, and other systems where battery/DC power-line monitoring is critical. High-side power-line monitoring is especially useful in battery-powered systems, since it does not interfere with the ground path of battery charger.
Parametrics
MAX4173TEUT absolute maximum ratings: (1)V+, RS+, RS-, PG: -0.3V to +36V; (2)OUT: -0.3V to (V+ + 0.3V); (3)Differential Input Voltage, VRS+ - VRS-: ±700mV; (4)Current into Any Pin: ±50mA; (5)Continuous Power Dissipation (TA = +70℃) SO (derate 5.88mW/℃ above +70℃): 471mW; (6)μMAX (derate 4.10mW/℃ above +70℃): 330mW; (7)Operating Temperature Range: -40℃ to +85℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX4173TEUT features: (1)Low-Cost, High-Side Current-Sense Amplifier; (2)±0.5% Typical Full-Scale Accuracy Over Temperature; (3)3V to 32V Supply Operation; (4)0V to 32V Input Range—Independent of Supply Voltage; (5)800kHz Bandwidth [VSENSE = 100mV (1C)]; (6)200kHz Bandwidth [VSENSE = 6.25mV (C/16)]; (7)Available in Space-Saving μMAX and SO Packages.

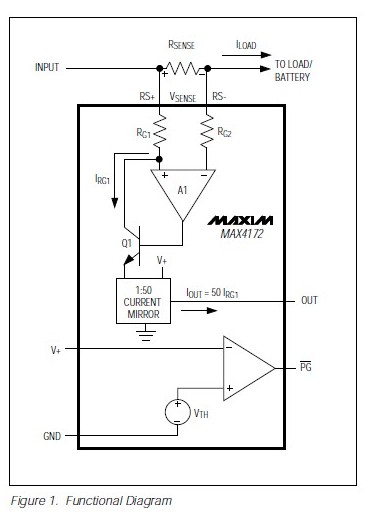

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4173TEUT+T |
Maxim Integrated Products |
Current Sense Amplifiers V-Out High-Side Current-Sense Amp |
Data Sheet |
|
|
||||||||||||
|
MAX4173TEUT-T |
Maxim Integrated Products |
Current Sense Amplifiers V-Out High-Side Current-Sense Amp |
Data Sheet |
|
|
||||||||||||
 |
MAX4173TEUT+TC4X |
Maxim Integrated Products |
IC AMP CURRENT SENSE SOT23-6 |
Data Sheet |
|
|
||||||||||||
