Product Summary

The PIC16F72-I/SP is a 28-Pin, 8-Bit CMOS FLASH Microcontroller with A/D Converter.

Parametrics

PIC16F72-I/SP absolute maximum ratings: (1)Ambient temperature under bias: -55 to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR. and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3 to +6.5V; (5)Voltage on MCLR with respect to VSS: 0 to +13.5V; (6)Voltage on RA4 with respect to Vss : 0 to +12V; (7)Total power dissipation: 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ± 20 mA; (12)Maximum output current sunk by any I/O: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA; (14)Maximum current sunk by PORTA, PORTB: 200 mA; (15)Maximum current sourced by PORTA, PORTB: 200 mA; (16)Maximum current sunk by PORTC: 200 mA; (17)Maximum current sourced by PORTC: 200 mA.

Features

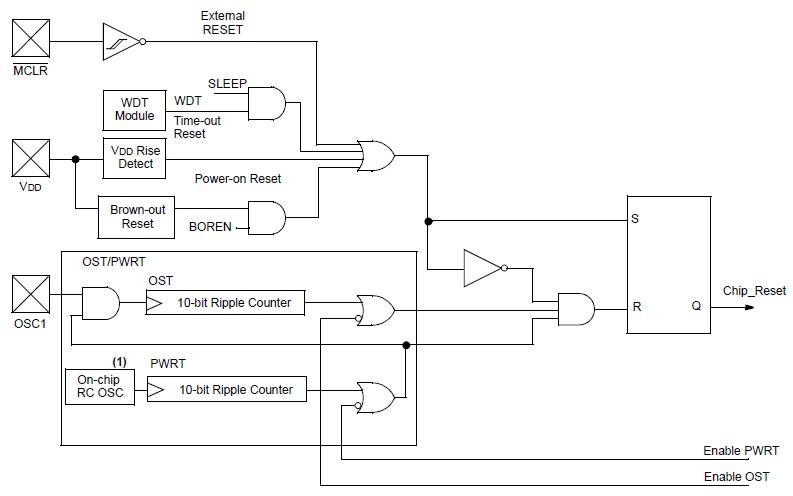

PIC16F72-I/SP features: (1)1,000 erase/write cycle FLASH program memory typical; (2)Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (3)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (4)Programmable code protection; (5)Power saving SLEEP mode; (6)Selectable oscillator options; (7)In-Circuit Serial Programming (ICSP) via 2 pins; (8)Processor read access to program memory.
