Product Summary
The MAX6041BEUR is a Precision, Low-Power, Low-Dropout, SOT23-3 Voltage Reference. The applications of the MAX6041BEUR are Hand-Held Equipment, Data Acquisition Systems, Industrial and Process-Control Systems, Battery-Operated Equipment, Hard-Disk Drives.
Parametrics
MAX6041BEUR absolute maximum ratings: (1)Voltages Referenced to GND, IN: -0.3V to +13.5V, OUT: -0.3V to (VIN + 0.3V); (2)Output Short Circuit to GND or IN (VIN < 6V): Continuous; (3)Output Short Circuit to GND or IN (VIN ≥ 6V): 60s; (4)Continuous Power Dissipation (TA = +70°C): 320mW; (5)Operating Temperature Range: -40°C to +85°C; (6)Storage Temperature Range: -65°C to +150°C; (7)Lead Temperature (soldering, 10s): 300°C.
Features
MAX6041BEUR features: (1)0.2% (max)Initial Accuracy; (2)15ppm/°C (max)Temperature Coefficient; (3)35μA (max)Quiescent Supply Current; (4)0.8μA/V Supply Current Variation with VIN; (5)±500μA Output Source and Sink Current; (6)100mV Dropout at 500μA Load Current; (7)0.12μV/μA Load Regulation; (8)8μV/V Line Regulation; (9)Stable with CLOAD = 0 to 2.2nF.

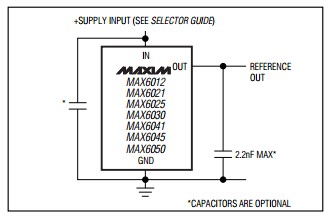

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX6041BEUR-T |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||||||
 |
MAX6041BEUR+T |
Maxim Integrated Products |
Voltage & Current References Low-Power Low-Drop Voltage Ref |
Data Sheet |
|
|
||||||||
