MAX809T

cost-effective system supervisor circuit, SOT-23, 200mA, -0.3 to 6.0 V, MAX809T

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 1000 :	0.05 / Piece
10000 ~ 50000 :	0.01 / Piece

PartNumber:: MAX809T

Brand:: Maxim Integrated Products - Maxim | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 50000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Jolin's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-04

From Other Seller

Part Number:MAX809T
US $0.01 - 0.05
Quantity:

piece

Product Summary

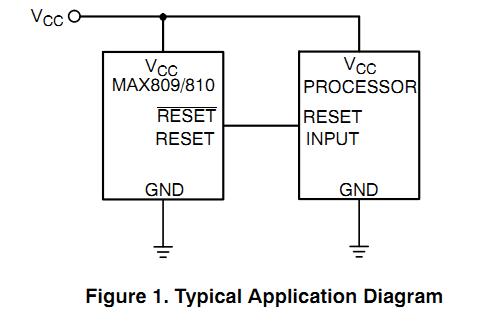

The MAX809T is a cost-effective system supervisor circuit designed to monitor VCC in digital systems. It provides a reset signal to the host processor when necessary. No external components are required. The reset output is driven active within 10 sec of VCC falling through the reset voltage threshold. Reset is maintained active for a timeout period which is trimmed by the factory after VCC rises above the reset threshold. The MAX809T has an active low RESET output. Both devices are available in SOT-23 packages.

Parametrics

MAX809T absolute maximum ratings: (1)Power Supply Voltage (VCC to GND), VCC: -0.3 to 6.0 V; (2)RESET Output Voltage (CMOS): -0.3 to (VCC + 0.3) V; (3)Input Current, VCC: 20 mA; (4)Output Current, RESET: 20 mA; (5)dV/dt (VCC): 100 V/sec; (6)Thermal Resistance, Junction-to-Air, RθJA: 301℃/W; (7)Operating Junction Temperature Range, TJ: -40 to +105℃; (8)Storage Temperature Range, Tstg: -65 to +150℃; (9)Lead Temperature (Soldering, 10 Seconds) Tsol: +260℃; (10)ESD Protection: 2000V; (11)Latchup Current Maximum Rating: 200mA.

Features

MAX809T features: (1)Precision VCC Monitor for 1.5 V, 2.5 V, 3.0 V, 3.3 V, and 5.0V Supplies; (2)Precision Monitoring Voltages from 1.2 V to 4.9 V Available in 100 mV Steps; (3)Four Guaranteed Minimum Power-On Reset Pulse Width Available (1 ms, 20 ms, 100 ms, and 140 ms); (4)RESET Output Guaranteed to VCC = 1.0 V; (5)Low Supply Current; (6)Compatible with Hot Plug Applications; (7)VCC Transient Immunity; (8)No External Components; (9)Wide Operating Temperature: -40 to 10℃; (10)Pb-Free Packages are Available.
