Product Summary
The MAX824SEUK+T microprocessor (μP) supervisory circuit combines reset output, watchdog, and manual-reset input functions in a 5-pin SOT23-5 package. It significantly improves system reliability and accuracy compared to separate ICs or discrete components. The MAX824SEUK+T is specifically designed to ignore fast transients on VCC. Five preprogrammed reset threshold voltages are available, designated by the following package suffixes: L = 4.63V, M = 4.38V, T = 3.08V, S = 2.93V, and R = 2.63V. The MAX824SEUK+T has an active-low reset output, which is guaranteed to be in the correct state for VCC down to 1V. The MAX824SEUK+T also has an active-high reset output.
Parametrics
MAX824SEUK+T absolute maximum ratings: (1)VCC: -0.3V to +6.0V; (2)All Other Pins: -0.3V to (VCC + 0.3V); (3)Input Current, All Pins Except RESET and RESET: 20mA; (4)Output Current, RESET, RESET: 20mA; (5)Rate of Rise, VCC: 100V/μs; (6)Continuous Power Dissipation (TA = +70℃), SOT23-5 (derate 7.1mW/℃ above +70℃): 571mW; (7)Operating Temperature Range, MAX82_EUK: -40℃ to +85℃; (8)Storage Temperature Range: -65℃ to +160℃; (9)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX824SEUK+T features: (1)Precision Monitoring of +3V, +3.3V, and +5V Power Supplies; (2)Operating Current: 10μA (MAX823L/M); 3μA (MAX825T/S/R); (3)Fully Specified Over Temperature; (4)140ms Min Power-On Reset; (5)Guaranteed RESET Valid to VCC = 1V; (6)Power-Supply Transient Immunity; (7)Watchdog Timer with 1.6sec Timeout (MAX823/MAX824); (8)Manual-Reset Input (MAX823/MAX825); (9)No External Components.

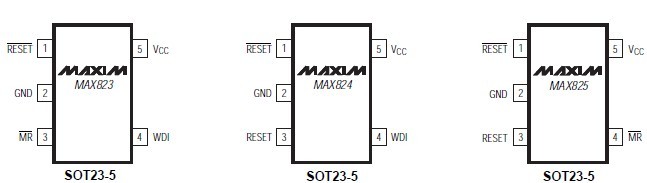

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX824SEUK+T |
Maxim Integrated Products |
Supervisory Circuits 5-Pin MPU Supervisor |
Data Sheet |
|
|
||||||||||||
