MAX825SEUK+T

MAX825SEUK+T, microprocessor, SOT23-5, 20mA, -0.3V to +6.0V, 571mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 1000 :	0.05 / Piece
10000 ~ 50000 :	0.01 / Piece

PartNumber:: MAX825SEUK+T

Brand:: Maxim Integrated Products - Maxim | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 50000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Jolin's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-04

From Other Seller

Part Number:MAX825SEUK+T
US $0.01 - 0.05
Quantity:

piece

Product Summary

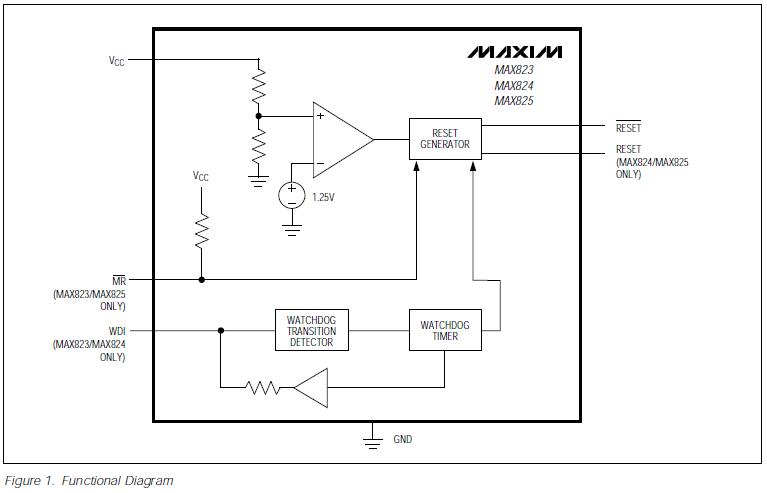

The MAX825SEUK+T is a microprocessor supervisory circuit. The MAX825SEUK+T combines reset output, watchdog, and manual-reset input functions in a 5-pin SOT23-5 package. The MAX825SEUK+T significantly improves system reliability and accuracy compared to separate ICs or discrete components. The MAX825SEUK+T is specifically designed to ignore fast transients on VCC. The applications of the device include Battery-Powered Computers and Controllers, Embedded Controllers, Intelligent Instruments, Automotive Systems, Critical μP Monitoring and Portable/Battery-Powered Equipment.

Parametrics

MAX825SEUK+T absolute maximum ratings: (1)VCC: -0.3V to +6.0V; (2)All Other Pins: -0.3V to (VCC + 0.3V); (3)Input Current, All Pins Except RESET and RESET: 20mA; (4)Output Current, RESET, RESET: 20mA; (5)Rate of Rise, VCC: 100V/μs; (6)Continuous Power Dissipation: 571mW; (7)Operating Temperature Range: -40 to +85℃; (8)Storage Temperature Range: -65 to +160℃; (9)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX825SEUK+T features: (1)Precision Monitoring of +3V, +3.3V, and +5V Power Supplies; (2)Operating Current: 3μA; (3)Fully Specified Over Temperature; (4)140ms Min Power-On Reset; (5)Guaranteed RESET Valid to VCC = 1V; (6)Power-Supply Transient Immunity; (7)Watchdog Timer with 1.6sec Timeout; (8)Manual-Reset Input; (9)No External Components.
