Product Summary
The MIC2776N-YM5 is a power supply supervisor which provides under-voltage monitoring and power-on reset generation in a compact 5-pin SOT package. Features include an adjustable under-voltage detector, a delay-generator, a manual reset input, and a choice of active-high, active-low, or open-drain active-low reset output. The applications of the MIC2776N-YM5 are Monitoring processor, ASIC, or FPGA core voltage, Computer systems, PDAs/Hand-held PCs, Embedded controllers, Telecommunications systems, Power supplies, Wireless / cellular systems, Networking hardware.
Parametrics
MIC2776N-YM5 absolute maximum ratings: (1)Supply Voltage (VDD): -0.3V to +7V; (2)Input Voltage (VIN): -0.3V to +7V; (3)RST, (/RST)Current: 20mA; (4)Storage Temperature (TS): -65°C to +150°C; (5)ESD Rating: 1.5kV.
Features
MIC2776N-YM5 features: (1)Inputs can be pulled above VDD (7V abs. max.); (2)Open-drain output can be pulled above VDD (7V abs. max.); (3)Ultra-low supply current, 3.0μA typical; (4)Rejects brief input transients; (5)IttyBitty SOT-23-5 package; (6)User-adjustable input can monitor supplies as low as 0.3V; (7)±1.5% threshold accuracy; (8)Separate VDD input; (9)Generates power-on reset pulse (140ms min.).

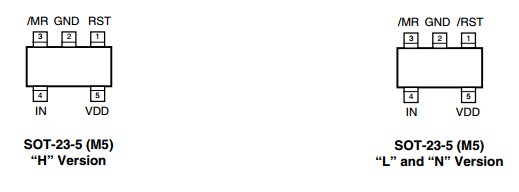

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MIC2776N-YM5 TR |
IC SUPERVISOR ADJ MCRPWR SOT23-5 |
Data Sheet |
|
|
||||||||||||||||
