Product Summary
The MIC5265-1.5YD5 is a 150mA LDO in lead-free Thin SOT-23-5 packaging ideal for applications where cost is the priority. The MIC5265-1.5YD5 is ideal for any application in portable electronics, including both RF and Digital applications. With low output noise and high PSRR, the MIC5265-1.5YD5 is ideal for noise sensitive applications such as RF. While the fast transient response and active shutdown circuitry makes it well-suited for powering digital circuitry. Applications are (1)Cellular Telephones; (2)PDAs; (3)GPS Receivers.
Parametrics
MIC5265-1.5YD5 absolute maximum ratings: (1)Supply Input Voltage (VIN): 0V to +7V; (2)Enable Input Voltage (VEN1): 0V to +7V; (3)Power Dissipation (PD): Internally Limited (3); (4)Junction Temperature (TJ): -40°C to 125°C; (5)Lead Temperature (soldering, #sec.): -55°C to 150°C; (6)Storage Temperature (Ts): 260°C; (7)EDS Rating (4): 2kV.
Features
MIC5265-1.5YD5 features: (1)27V to 55V supply voltage; (2)Low 75μA quiescent current per LDO; (3)Thin SOT-23-5 package; (4)Low Noise – 57μVrms; (5)High PSRR – 60dB at 1kHz; (6)Low dropout voltage – 210mV at 150mA; (7)Stable with ceramic output capacitors; (8)Fast transient response; (9)Active shutdown.

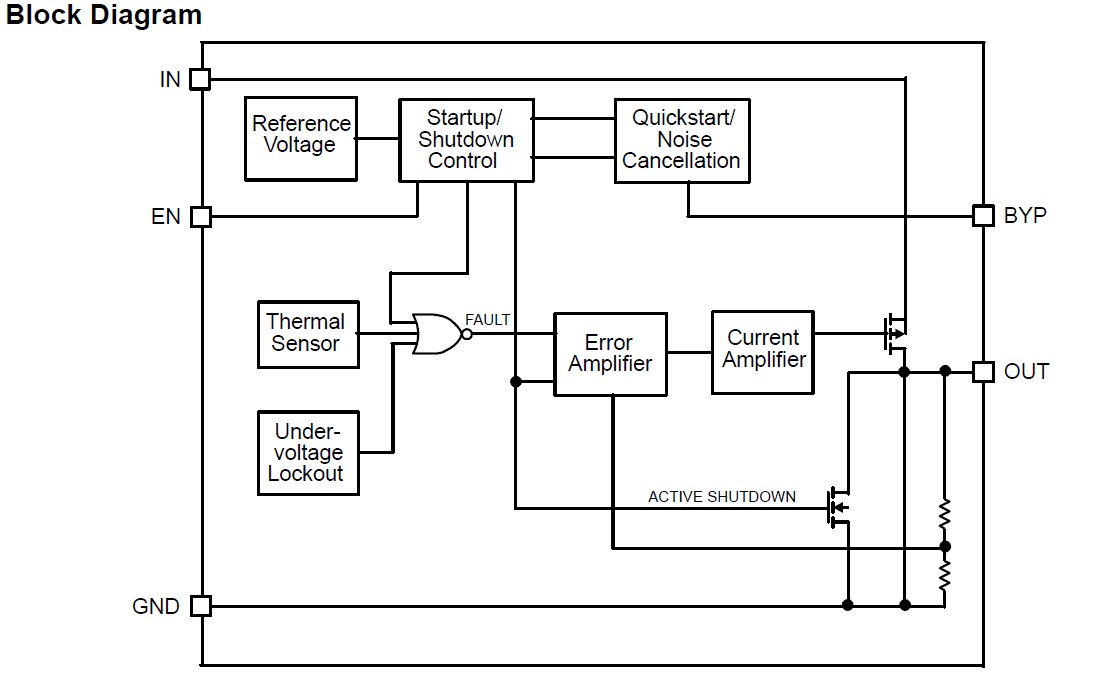

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC5265-1.5YD5 |
|
IC REG LDO 1.5V .15A TSOT23-5 |
Data Sheet |
Negotiable |
|
||||||||||||
|
MIC5265-1.5YD5 TR |
|
IC REG LDO 1.5V .15A TSOT23-5 |
Data Sheet |
|
|
||||||||||||
