Product Summary

The PIC16F648A-I/SS is a low-cost, high-performance, CMOS, fully- static, 8-bit microcontroller. It has integrated features to reduce external components, thus reducing system cost, enhancing system reliability and reducing power consumption.

Parametrics

PIC16F648A-I/SS absolute maximum ratings:(1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3 to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3 to +14V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin : 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ±20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by all GPIO: 200 mA; (14)Maximum current sourced all GPIO:200 mA.

Features

PIC16F648A-I/SS apecial Microcontroller Features: (1)Internal and External Oscillator Options: Precision Internal 4 MHz oscillator factory calibrated to ±1%; External Oscillator support for crystals and resonators; low-power internal 48 kHz ASCILATOR; (2)Power-Saving Sleep mode; (3)programmable weak pull-ups on PORTB; (4)multiplexed master clear/input-pin; (5)Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation; (6)low-voltage programming; (7)in-circuit serial programming; (8)programmable code protection; (9)brown-out reset; (10)power-on reset; (11)power-up timer and oscillator start-up timer; (12)wide operating voltage range; (13)High Endurance Flash/EEPROM Cell: 100,000 write Flash endurance; 1000,000 write EEPROM endurance;100,000 write flash endurance; 40 year Data Retention.

Diagrams

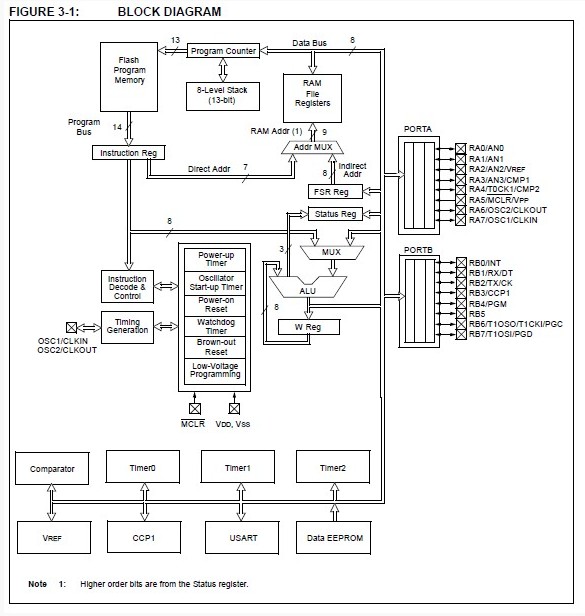

PIC16F648A-I/SS block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16F648A-I/SS
PIC16F648A-I/SS

Microchip Technology

8-bit Microcontrollers (MCU) 7KB 256 RAM 16 I/O

Data Sheet

0-1: $1.63
1-10: $1.30
10-25: $1.26
25-100: $1.21
PIC16F648A-I/SSC06
PIC16F648A-I/SSC06

Other


Data Sheet

Negotiable
