Product Summary

The PIC16F684-I/SL is a 14-pin flash-based 8-bit CMOS microcontroller with nanowatt technology.

Parametrics

PIC16F684-I/SL absolute maximum ratings: (1)VIOFF Input offset voltage: ± 5.0 to ± 10 mV; (2)VICM Input common mode voltage: 0 to VDD - 1.5 V; (3)CMRR Common Mode Rejection Ratio: 35 to 70 db; (4)VRUR Unit Resistor Value (R): 2k W; (5)TSET Settling Time: 10 ms.

Features

PIC16F684-I/SL features: (1)Decrease system cost; (2)Increase system reliability; (3)Increase design flexibility.

Diagrams

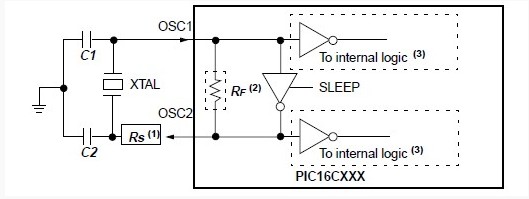

PIC16F684-I/SL diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16F684-I/SL
PIC16F684-I/SL

Microchip Technology

8-bit Microcontrollers (MCU) 3.5KB 128 RAM 12 I/O

Data Sheet

0-1: $0.89
1-10: $0.71
10-25: $0.70
25-100: $0.68
PIC16F684-I/SLG
PIC16F684-I/SLG

Microchip Technology

8-bit Microcontrollers (MCU) 3.5KB 128 RAM 12 I/O Lead Free Package

Data Sheet

Negotiable
