Product Summary

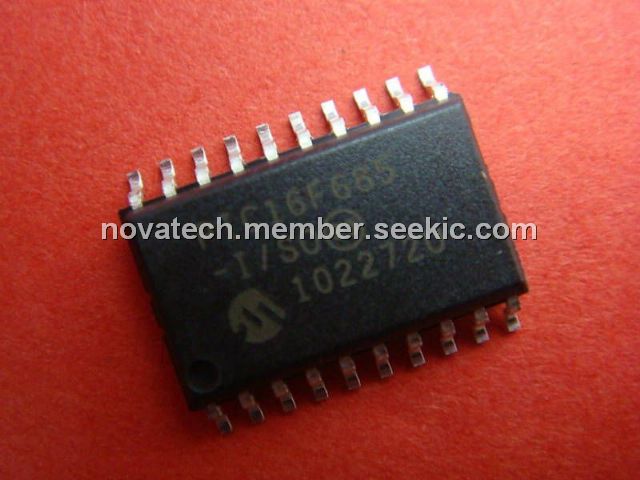

The PIC16F685-I/SO is the 20-pin flash-based, 8-bit CMOS microcontroller with nanoWatt technology.
Parametrics
PIC16F685-I/SO absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation(1): 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by PORTA, PORTB and PORTC (combined): 200 mA; (14)Maximum current sourced PORTA, PORTB and PORTC (combined): 200 mA.
Features
PIC16F685-I/SO features: (1)Precision Internal Oscillator; (2)Power-Saving Sleep mode; (3)Wide operating voltage range (2.0V-5.5V); (4)Industrial and Extended Temperature range; (5)Power-on Reset (POR); (6)Power-up Timer (PWRTE) and Oscillator Start-up Timer (OST); (7)Brown-out Reset (BOR) with software control option; (8)Enhanced low-current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable; (9)Multiplexed Master Clear/Input pin; (10)Programmable code protection.

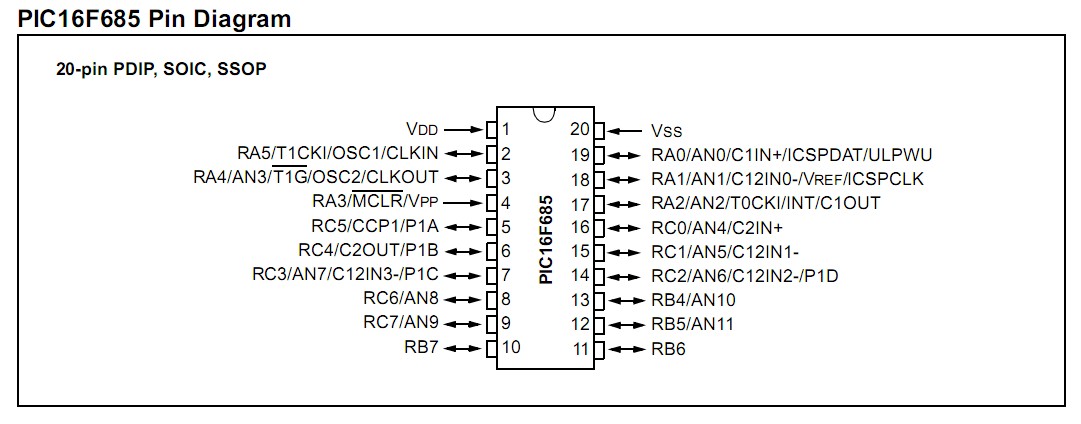

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PIC16F685-I/SO |
Microchip Technology |
8-bit Microcontrollers (MCU) 7KB FL 256R 18 I/O |
Data Sheet |
|
|
|||||||||||||
