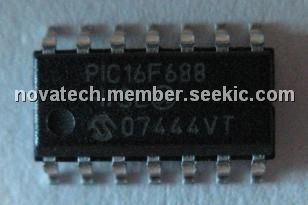

PIC16F688-I/SL

14-Pin, Flash-Based, 8-Bit, SOIC14, CMOS Microcontroller, with nanoWatt Technology, 50 nA Standby Current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~100.00

PartNumber:: PIC16F688-I/SL

Brand:: Microchip Technology - Microchip | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jolin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-15

From Other Seller

Part Number:PIC16F688-I/SL
US $0.01 - 100.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

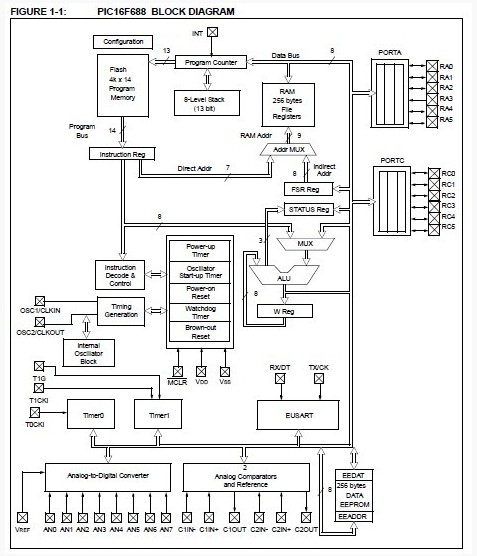

The PIC16F688-I/SL is covered by this data sheet. It is a 14-Pin Flash-Based, 8-Bit CMOS Microcontroller with nanoWatt Technology. It is available in 14-pin PDIP, SOIC, TSSOP and QFN packages.

Parametrics

PIC16F688-I/SL absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 95 mA; (8)Maximum current into VDD pin: 95 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by PORTA, PORTB and PORTE (combined): 90 mA; (14)Maximum current sourced by PORTA, PORTB and PORTE (combined): 90 mA.

Features

PIC16F688-I/SL features: (1)Power-Saving Sleep mode; (2)Wide operating voltage range (2.0V-5.5V); (3)Industrial and Extended Temperature range; (4)Power-on Reset (POR); (5)Power-up Timer (PWRT) and Oscillator Start-up; (6)Timer (OST); (7)Brown-out Reset (BOR) with software control; (8)option; (9)Standby Current: 50 nA @ 2.0V, typical; (10)Operating Current: 11μA @ 32 kHz, 2.0V, typical; 220μA @ 4 MHz, 2.0V, typical; (11)Watchdog Timer Current: 1μA @ 2.0V, typical; (12)12 I/O pins with individual direction control.
