74HC4052

74HC4052, Dual 4-channel analog multiplexer/demultiplexer, SOP, -5V to +5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~50.00

PartNumber:: 74HC4052

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jolin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-06

From Other Seller

Part Number:74HC4052
US $1.00 - 50.00
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
ALC662

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

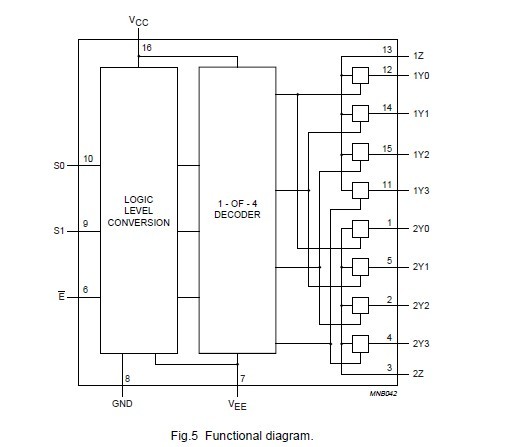

The 74HC4052 is a high-speed Si-gate CMOS device and is pin compatible with the HEF4052B. It is specified in compliance with JEDEC standard no. 7A. The 74HC4052 is dual 4-channel analog multiplexer or demultiplexer with common select logic. Each multiplexer has four independent inputs/outputs (pins nY0 to nY3) and a common input/output (pin nZ). The common channel select logics include two digital select inputs (pins S0 and S1) and an active LOW enable input (pin E). When pin E = LOW, one of the four switches is selected (low-impedance ON-state) with pins S0 and S1. When pin E = HIGH, all switches are in the high-impedance OFF-state, independent of pins S0 and S1.

Parametrics

74HC4052 absolute maximum ratings: (1)supply voltage, VCC - GND, VCC: 4.5 to 5.5V; (2)supply voltage, VCC - VEE, VCC: 2.0 to 10.0V; (3)input voltage, VI: GND to VCC V; (4)switch voltage, VS: VEE to VCC V; (5)operating ambient temperature, Tamb: -40 to +85℃.

Features

74HC4052 features: (1)Wide analog input voltage range from -5V to +5V; (2)Low ON-resistance; (3)Logic level translation: to enable 5V logic to communicate with ±5V analog signals; (4)Typical break before make built in; (5)Complies with JEDEC standard no. 7A; (6)ESD protection; (7)Specified from -40℃ to +85℃ and -40℃ to +125℃.
