Product Summary
The AD8009JRTZ-REEL is an ultrahigh speed current feedback amplifier with a phenomenal 5,500 V/µs slew rate that results in a rise time of 545 ps, making it ideal as a pulse amplifier.
Parametrics
AD8009JRTZ-REEL absolute maximum ratings: (1)Supply Voltage: 12.6 V; (2)Internal Power Dissipation: 0.75 W; (3)Input Voltage (Common-Mode): ±VS; (4)Differential Input Voltage: ±3.5 V; (5)Storage Temperature Range: –65 to +125℃; (6)Operating Temperature Range: –40 to +85℃; (7)Operating Temperature Range: 0 to 70℃; (8)Lead Temperature Range (Soldering 10 sec): 300℃.
Features
AD8009JRTZ-REEL features: (1)Ultrahigh Speed; (2)Low Distortion over Wide Bandwidth SFDR; (3)Good Video Specifications; (4)High Output Drive.

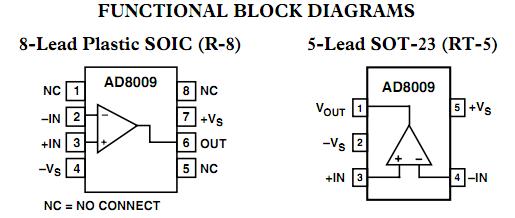

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8009JRTZ-REEL |
|
IC OPAMP CF LDIST 175MA SOT23-5 |
Data Sheet |
|
|
||||||
|
AD8009JRTZ-REEL7 |
|
IC OPAMP CF LDIST 175MA SOT23-5 |
Data Sheet |
|
|
||||||
