Product Summary
The ADM6315-29D2ARTZ is a reliable voltage-monitoring device that is suitable for use in most voltage-monitoring applications. The ADM6315-29D2ARTZ is designed to monitor as little as a 1.8% degradation of a power supply voltage. The ADM6315-29D2ARTZ can monitor all voltages (at 100 mV increments) from 2.5 V to 5 V. The applications of the ADM6315-29D2ARTZ are Microprocessor systems, Controllers, Intelligent instruments, Automotive systems, Safety systems and Portable instruments.
Parametrics
ADM6315-29D2ARTZ absolute maximum ratings: (1)Terminal Voltage (with Respect to Ground), VCC: -0.3 V to +6 V; All Other Inputs: -0.3 V to +6 V; (2)Input Current, VCC: 20 mA; (3)Output Current, RESET: 20 mA; (4)Operating Temperature Range: -40 to +125℃; (5)Storage Temperature Range: -65 to +160℃; (6)Lead Temperature (Soldering, 10 sec): 300℃; (7)Vapor Phase (60 sec): 215℃; (8)Infrared (15 sec): 220℃; (9)ESD Rating: 2.5 kV.
Features
ADM6315-29D2ARTZ features: (1)Specified over temperature; (2)Low power consumption (5μA typical); (3)Precision voltage monitor of voltages from 2.5 V to 5 V at 100 mV increments; (4)Reset assertion down to VCC > 1 V; (5)Reset timeout periods: 1 ms, 20 ms, 140 ms, or 1120 ms (minimum); (6)Built-in manual reset; (7)Pin compatible with the ADM811; (8)Available in SOT-143 package.

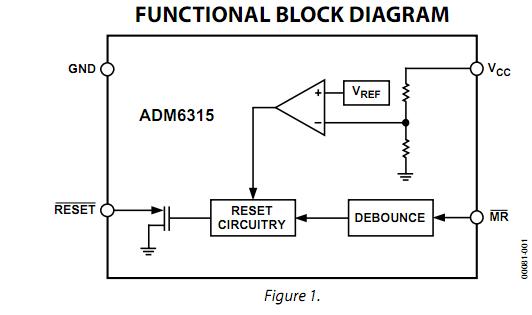

Diagrams
