Product Summary
The AO3401 is a kind of P-Channel Enhancement Mode Field Effect Transistor, which uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a load switch or in PWM applications. Standard product AO3401 is Pb-free (meets ROHS & Sony 259 specifications). AO3401L is a Green Product ordering option. AO3401 and AO3401L are electrically identical.
Parametrics
AO3401 absolute maximum ratings: (1)VDD, Supply Voltage: -0.5 to +22 V; (2)VI, DC Input Voltage: -0.5 to VDD + 0.5 V; (3)II, DC Input Current: ± 10 mA; (4)PD, Power Dissipation per Package: 500 mW; Power Dissipation per Output Transistor: 100 mW; (5)Top, Operating Temperature: -55 to +125 ℃; (6)Tstg, Storage Temperature: -65 to +150℃.
Features
AO3401 features: (1)Drain-Source Voltage, VDS: -30V; (2)Gate-Source Voltage, VGS: ±12V; (3)Continuous Drain Current, ID: TA=25℃: -4.2A; TA=70℃: -3.5A; (4)Pulsed Drain Current, IDM: -30A; (5)Power Dissipation, PD: TA=25℃: 1.4W; TA=70℃: 1W; (6)Junction and Storage Temperature Range: -55 to 150℃.

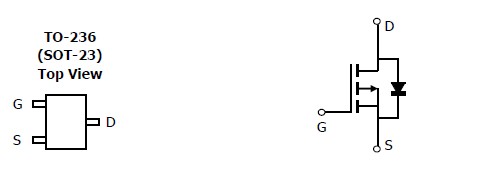

Diagrams
