Product Summary
The CLC452AJM5X is a Single Supply, Low-Power, High Output, Current Feedback Amplifier. It is a new output stage that delivers high output drive current (100mA), but consumes minimal quiescent supply current (3.0mA) from a single 5V supply. Its current feedback architecture, fabricated in an advanced complementary bipolar process, maintains consistent performance over a wide range of gains and signal levels, and has a linear-phase response up to one half of the -3dB frequency. The applications of the CLC452AJM5X are (1)Coaxial cable driver; (2)Twisted pair driver; (3)Transformer/Coil Driver; (4)High capacitive load driver; (5)Video line driver; (6)Portable/battery-powered applications; (7)A/D driver.
Parametrics
CLC452AJM5X absolute maximum ratings: (1)supply voltage (VCC - VEE) +14V; (2)output current (see note C) 140mA; (3)common-mode input voltage VEE to VCC; (4)maximum junction temperature +150℃; (5)storage temperature range -65 to +150℃; (6)lead temperature (soldering 10 sec) +300℃; (7)ESD rating (human body model) 500V.
Features
CLC452AJM5X features: (1)100mA output current; (2)3.0mA supply current; (3)130MHz bandwidth (Av = +2); (4)-78/-85dBc HD2/HD3 (1MHz); (5)25ns settling to 0.05%; (6)400V/μs slew rate; (7)Stable for capacitive loads up to 1000pF; (8)Single 5V to ±5V supplies; (9)Available in Tiny SOT23-5 package.

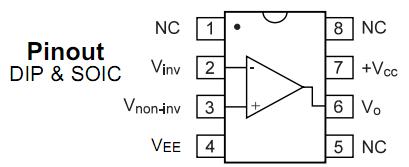

Diagrams
 |
