Product Summary
The ESDA14V2SC5 is a monolithic voltage suppressor designed to protect components which are connected to data and transmission lines against ESD. They clamp the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transient. The ESDA14V2SC5 is suitable for where transient overvoltage protection in ESD sensitive equipment is required, such as: (1)computers; (2)printers; (3)communication systems; (4)gsm handsets and accessories; (5)other telephone set.
Parametrics
ESDA14V2SC5 absolute maximum ratings: (1)PPP Peak pulse power (8/20μs): 500 W; (2)Tj Junction temperature: 150℃; (3)Tstg Storage temperature range: -55 to +150℃; (4)TL Lead solder temperature (10 second duration): 260℃; (5)Top Operating temperature range: -40 to +125℃.
Features
ESDA14V2SC5 features: (1)4 unidirectional transil functions; (2)low leakage current: IR max. < 20 μA at VBR; (3)500 W peak pulse power (8/20 μs).

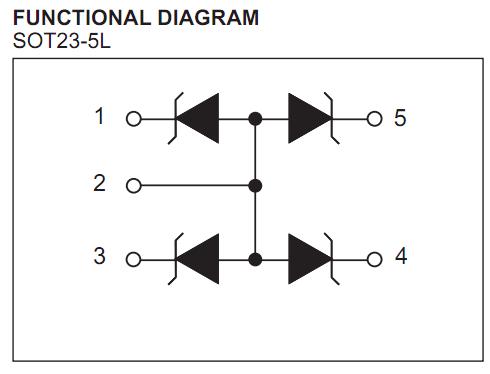

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ESDA14V2SC5 |
STMicroelectronics |
TVS Diode Arrays 14.2V 500W Unidirect |
Data Sheet |
|
|
|||||||||||||
