Product Summary

The ESDA5V3L is a dual monolithic voltage suppressor designed to protect components which are connected to data and transmission lines against ESD. It clamps the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transients. The ESDA5V3L can also work as bidirectionnal suppressor by connecting only pin1 and 2. The ESDA5V3L is suitable for Where transient overvoltage protection in ESD sensitive equipment is required, such as: (1)computers; (2)printers; (3)communication systems. It is particulary recommended for the RS232 I/O port protection where the line interface withstands only with 2kV ESD surges.

Parametrics

ESDA5V3L absolute maximum ratings: (1)PPP Peak pulse power: 300 W; (2)Tstg, Storage temperature range: -55 to +150℃; (3)Tj, Maximum junction temperature: 150℃; (4)TL Maximum lead temperature for soldering during 10s: 260℃; (5)Top Operating temperature range: -40 to +125℃.

Features

ESDA5V3L feaures: (1)2 unidirectional transil functions; (2)low leakage current: IR max. < 20μA at VBR; (3)300 W peak pulse power (8/20μs).

Diagrams

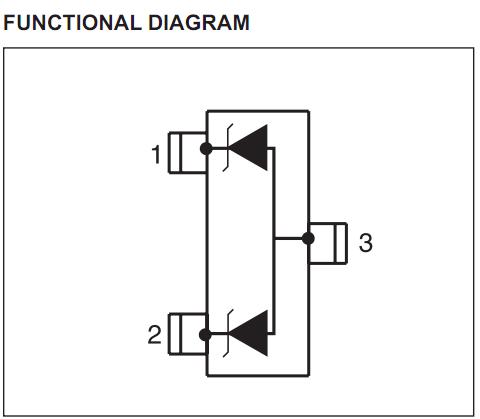

ESDA5V3L block diagram
