Product Summary

The ESDA6V1BC6 is a 5-bit wide monolithic suppressor which is designed to protect against ESD components connected to data and transmission lines. The ESDA6V1BC6 is suitable for where transient overvoltage protection in ESD sensitive equipment is required, such as: (1)Computers; (2)Printers; (3)Communication systems; (4)Cellular phone handsets and accessories; (5)Other telephone sets; (6)Set top boxes.

Parametrics

ESDA6V1BC6 absolute maximum ratings: (1)PPP Peak pulse power: 100 W; (2)Tj Junction temperature: 150℃; (3)Tstg Storage temperature range: -55 to +150℃; (4)TL Lead solder temperature (10 seconds duration): 260℃; (5)Top Operating temperature range: -40 to +125℃.

Features

ESDA6V1BC6 features: (1)5 unidirectional transil functions; (2)breakdown voltage: VBR = 6.1V min; (3)low leakage current: IR max<1 μA.

Diagrams

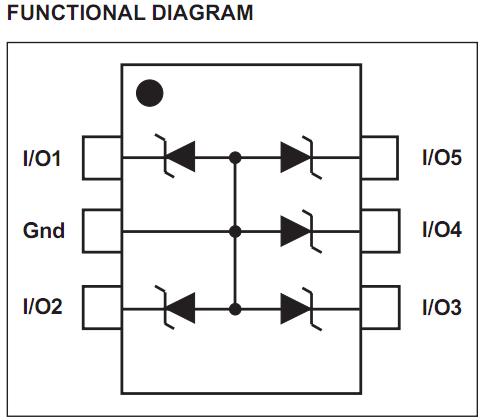

ESDA6V1BC6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ESDA6V1BC6
ESDA6V1BC6
STMicroelectronics
TVS Diode Arrays 6.1V 80W Bidirect
Data Sheet
0-1: $0.32
1-10: $0.28
10-100: $0.25
100-250: $0.23
