Product Summary
The FAN4041BIS3 is an adjustable precision shunt reference. It is ideal for space- and cost-sensitive applications. The FAN4041BIS3 is available with output voltage tolerances of 0.5% and 1%. The FAN4041BIS3 also has excellent temperature coefficients, to 100ppm/℃ for the tighter tolerance grades. The FAN4041BIS3 has an extended operating current range, sinking as much as 25mA. The applications of the device are (1)Portable equipment; (2)Disk drives; (3)Instrumentation; (4)Audio equipment; (5)Data acquisition systems.
Parametrics
FAN4041BIS3 absolute maximum ratings: (1)Continuous cathode current, IK: -30 to 30 mA; (2)Maximum Output Voltage: 12 V; (3)Storage Temperature Range: -65 to 150℃; (4)Lead Temperature (Soldering, 10 sec.): 300℃.
Features
FAN4041BIS3 features: (1)Adjustable shunt reference; (2)Tolerances to +0.5% (25℃); (3)Low output noise; (4)Low temperature coefficient to 100 ppm/℃ max; (5)Small packages; (6)Extended operating current range.

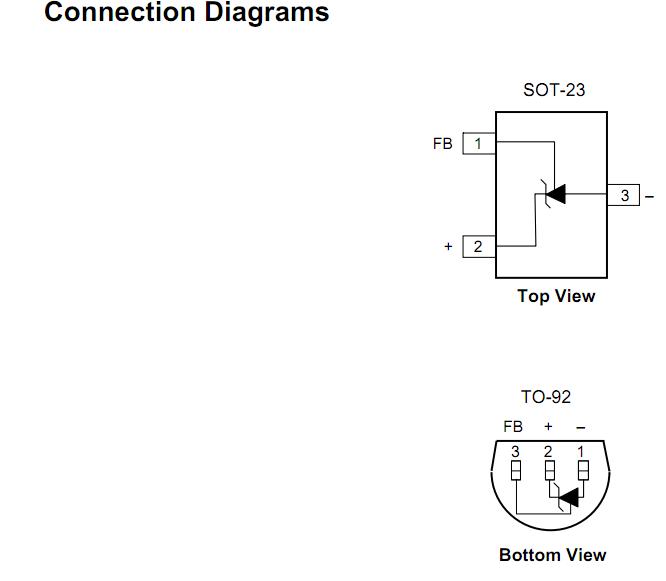

Diagrams
 |
