Product Summary
The HT1668 is an LED Controller driven on a 1/7 to 1/8 duty factor. Eleven segment output lines, six grid output lines, 1 segment/grid output lines, one display memory, control circuit , key scan circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer. Serial data is fed to HT1668 via a four-line serial interface. Housed in a 24-pin SO Package, HT1668 pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages. The HT1668 is ideal for: Micro-computer Peripheral Device, VCR set and Combi set.
Parametrics
HT1668 absolute maximum ratings: (1)Supply Voltage, VDD: -0.5 to +7 Volts; (2)Logic Input Voltage, VI: -0.5 to VDD +0.5 Volts; (3)Driver Output Current: IOLGR: +250 mA; IOHSG: -50 mA; (4)Maximum Driver Output Current/Total, ITOTAL: 400 mA.
Features
HT1668 features: (1)CMOS Technology; (2)Low Power Consumption; (3)Multiple Display Modes; (4)Key Scanning; (5)8-Step Dimming Circuitry; (6)Serial Interface for Clock, Data Input, Data Output, Strobe Pins; (7)Available in 24-Pin, SOP Package.

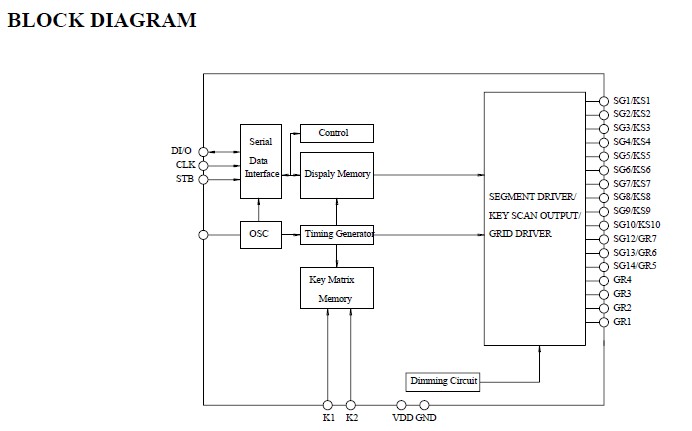

Diagrams
 |
