Product Summary
The LM4120IM5-4.1 is a precision low power low dropout bandgap voltage reference with up to 5 mA output current source and sink capability. The applications of the LM4120IM5-4.1 are (1)Portable, battery powered equipment; (2)Instrumentation and process control; (3)Automotive & Industrial; (4)Test equipment; (5)Data acquisition systems; (6)Precision regulators; (7)Battery chargers; (8)Base stations; (9)Communications; (10)Medical equipment.
Parametrics
LM4120IM5-4.1 absolute maximum ratings: (1)Maximum Voltage on input or enable pins: -0.3V to 14V; (2)Output Short-Circuit Duration Indefinite; (3)Power Dissipation: 350 mW; (4)ESD Susceptibility: 2kV.
Features
LM4120IM5-4.1 features: (1)Small SOT23-5 package; (2)Low dropout voltage: 120 mV Typ @ 1mA; (3)High output voltage accuracy: 0.2%; (4)Source and Sink current output: ±5mA; (5)Supply current: 160 μA Typ; (6)Low Temperature Coefficient: 50 ppm/℃; (7)Enable pin; (8)Fixed output voltages: 1.8, 2.048, 2.5, 3.0, 3.3, 4.096 and 5.0V; (9)Industrial temperature Range: -40 to +85℃; (10)(For extended temperature range, -40 to 125℃, contact National Semiconductor).

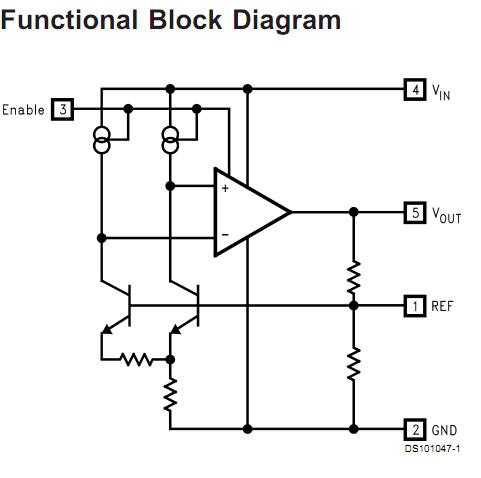

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM4120AIM5-4.1 |
National Semiconductor (TI) |
Voltage & Current References |
Data Sheet |
|
|
||||||||||||
 |
LM4120AIM5-4.1/NOPB |
National Semiconductor (TI) |
Voltage & Current References PREC MICROPWR LDO VLTG REF |
Data Sheet |
|
|
||||||||||||
