LMV321M5X

Rail-to-Rail Output Operational Amplifier, 50V, 5.5V, SOT

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 10000 :	0.05 / Piece
10000 ~ 50000 :	0.00 / Piece

PartNumber:: LMV321M5X

Brand:: National Semiconductor - NS | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Jolin's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-04

From Other Seller

Part Number:LMV321M5X
US $0.00 - 0.05
Quantity:

piece

Product Summary

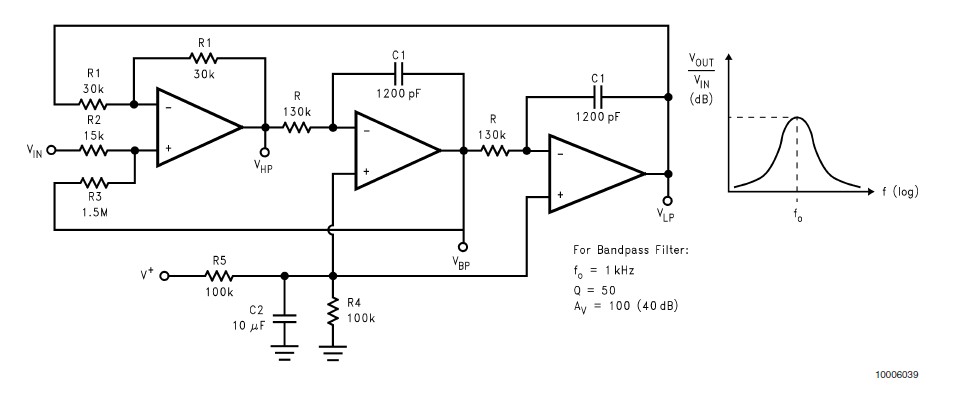

The LMV321M5X is a low voltage version of the dual and quad commodity op amp which currently operates at 50V. The LMV321M5X is the most cost effective solutions for the applications where low voltage operation, space saving and low price are needed. They offer specifications that meet or exceed the familiar LMV321 . The LMV321M5X has rail-to-rail output swing capability and the input common-mode voltage range includes ground. It exhibits excellent speed-power ratio, achieving 1MHz of bandwidth and 1V/μs of slew rate with low supply current. The applications of the LMV321M5X are: Active Filters; General Purpose Low Voltage Applications; General Purpose Portable Devices.

Parametrics

LMV321M5X absolute maximum ratings: (1)Differential Input Voltage: Supply Voltage; (2)Supply Voltage: 5.5V; (3)Infrared or Convection (20 sec) 235℃; (4)Storage Temp Range -65 to 150℃; (5)Junction Temperature(Note 5) 150℃; (6)Machine Model 100V; (7)Human Body Model: 2000V.

Features

LMV321M5X features: (1)Guaranteed 2.7V and 5V Performance; (2)No Crossover Distortion; (3)Space Saving Package SC70-5 2.0x2.1x1.0mm; (4)Industrial Temp Range -40 to +85℃; (5)Gain-Bandwidth Product 1MHz.
