Product Summary
The MAX4322EUK+T operational amplifier combines wide bandwidth and excellent DC accuracy with Rail-to-Rail operation at the inputs and outputs. The applications of the MAX4322EUK+T are Battery-Powered Instruments, Portable Equipment, Data-Acquisition Systems, Signal Conditioning, Low-Power, Low-Voltage Applications.
Parametrics
MAX4322EUK+T absolute maximum ratings: (1)Supply Voltage (VCC-VEE): 7.5V; (2)All Other Pins: (VCC + 0.3V)to (VEE - 0.3V); (3)Output Short-Circuit Duration: Continuous(short to either supply); (4)Continuous Power Dissipation (TA = +70°C): 571mW; (5)Operating Temperature Range: -40°C to +85°C; (6)Maximum Junction Temperature: 150°C; (7)Storage Temperature Range: -65°C to +160°C; (8)Lead Temperature (soldering, 10sec): 300°C.
Features
MAX4322EUK+T features: (1)SOT23 Packages; (2)+2.4V to +6.5V Single-Supply Operation; (3)Rail-to-Rail Input Common-Mode Voltage Range; (4)Rail-to-Rail Output Voltage Swing; (5)5MHz Gain-Bandwidth Product; (6)650μA Quiescent Current per Amplifier; (7)700μV Offset Voltage; (8)No Phase Reversal for Overdriven Inputs; (9)Drive 250Ω Loads; (10)25μA Shutdown Mode; (11)Unity-Gain Stable for Capacitive Loads up to 500pF.

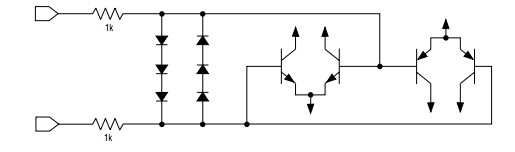

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4322EUK+T |
Maxim Integrated Products |
Operational Amplifiers - Op Amps Low-Power Rail-Rail I/O |
Data Sheet |
|
|
||||||||||||
