Product Summary
The MAX6336US23D3+T microprocessor (uP) supervisory circuit monitors the power supplies in 1.8V to 3.3V uP and digital systems. The device performs a single function: they assert a reset signal whenever the VCC supply voltage declines below a preset threshold or whenever manual reset is asserted. The applications of the MAX6336US23D3+T are Pentium II Computers, Computers, Controllers, Intelligent Instruments, Critical uP/uC Power Monitoring, Portable/Battery-Powered Equipment, Automotive.
Parametrics
MAX6336US23D3+T absolute maximum ratings: (1)Terminal Voltage (with respect to GND): VCC: -0.3V to +6V; (2)Push/Pull RESET or RESET, MR: -0.3V to (VCC + 0.3V); (3)Open-Drain RESET: -0.3V to +6V; (4)Input Current (VCC): 20mA; (5)Output Current (RESET, RESET): 20mA; (6)Rate of Rise, VCC: 100V/μs; (7)Continuous Power Dissipation (TA = +70°C): 320mW; (8)Operating Temperature Range: -40°C to +85°C; (9)Storage Temperature Range: -65°C to +160°C; (10)Lead Temperature (soldering, 10sec): 300°C.
Features
MAX6336US23D3+T features: (1)Ultra-Low 0.7V Operating Supply Voltage; (2)Low 3.3uA Supply Current; (3)Reset Thresholds Available from 1.6V to 2.5V, in Approximately 100mV Increments; (4)Debounced Manual Reset; (5)Fully Specified over Temperature; (6)Three Power-On Reset Pulse Widths Available(1ms min, 20ms min, 100ms min); (7)Low Cost; (8)Three Available Output Structures: Push/Pull RESET, Push/Pull RESET, Open-Drain RESET; (9)Guaranteed RESET/RESET Valid to VCC = 0.7V; (10)Power-Supply Transient Immunity; (11)No External Components; (12)4-Pin SOT143 Package.

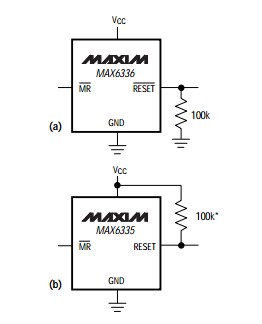

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX6336US23D3+T |
Maxim Integrated Products |
Supervisory Circuits 4-Pin uPower Reset Circuit |
Data Sheet |
|
|
|||||||||||||
