MAX825REUK

MAX825REUK, microprocessor, SOT23-5, 20mA, -0.3V to +6.0V, 571mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 1000 :	0.05 / Piece
10000 ~ 50000 :	0.01 / Piece

PartNumber:: MAX825REUK

Brand:: Maxim Integrated Products - Maxim | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 50000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Jolin's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-04

From Other Seller

Part Number:MAX825REUK
US $0.01 - 0.05
Quantity:

piece

Product Summary

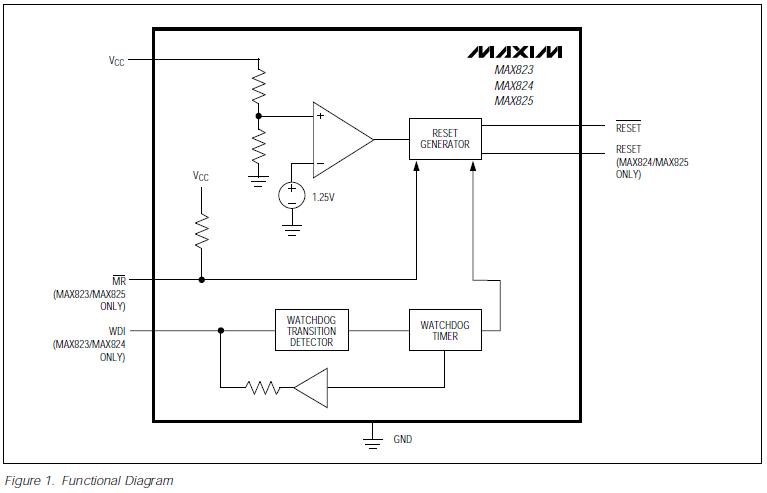

The MAX825REUK is a microprocessor supervisory circuit. The MAX825REUK combines reset output, watchdog, and manual-reset input functions in a 5-pin SOT23-5 package. The MAX825REUK significantly improves system reliability and accuracy compared to separate ICs or discrete components. The MAX825REUK is specifically designed to ignore fast transients on VCC. The applications of the device include Battery-Powered Computers and Controllers, Embedded Controllers, Intelligent Instruments, Automotive Systems, Critical μP Monitoring and Portable/Battery-Powered Equipment.

Parametrics

MAX825REUK absolute maximum ratings: (1)VCC: -0.3V to +6.0V; (2)All Other Pins: -0.3V to (VCC + 0.3V); (3)Input Current, All Pins Except RESET and RESET: 20mA; (4)Output Current, RESET, RESET: 20mA; (5)Rate of Rise, VCC: 100V/μs; (6)Continuous Power Dissipation: 571mW; (7)Operating Temperature Range: -40 to +85℃; (8)Storage Temperature Range: -65 to +160℃; (9)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX825REUK features: (1)Precision Monitoring of +3V, +3.3V, and +5V Power Supplies; (2)Operating Current: 3μA; (3)Fully Specified Over Temperature; (4)140ms Min Power-On Reset; (5)Guaranteed RESET Valid to VCC = 1V; (6)Power-Supply Transient Immunity; (7)Watchdog Timer with 1.6sec Timeout; (8)Manual-Reset Input; (9)No External Components.
