Product Summary
The MGA-82563-TR1 is an economical, easy-to-use GaAs MMIC amplifier that offers excellent linearity and low noise figure for applications from 0.1 to 6 GHz. Packaged in an miniature SOT-363 package, the MGA-82563-TR1 requires half the board space of a SOT-143 package. One external resistor is used to set the bias current taken by the device over a wide range. This allows the designer to use the same part in several circuit positions and tailor the linearity performance (and current consumption) to suit each position. The MGA-82563-TR1 is normally operating with Id set in the 20-60mA range.
Parametrics
MGA-82563-TR1 absolute maximum ratings: (1)Vd Device Voltage (pin 6): 6V; (2)Id Device Current (pin 6): 100mA; (3)Pin CW RF Input Power (pin 3): 18dBm; (4)Iref Bias Reference Current (pin 4): 10mA; (5)Pdiss Total Power Dissipation: 500mW; (6)TCH Channel Temperature: 150℃; (7)TSTG Storage Temperature: -65 to 150℃; (8)Thermal Resistance: 115℃/W.
Features
MGA-82563-TR1 features: (1)Single +3V or + 5V supply; (2)High linearity; (3)Low noise figure; (4)Miniature SOT363 (SC70) package; (5)Unconditionally stable; (6)Lead-free option available.

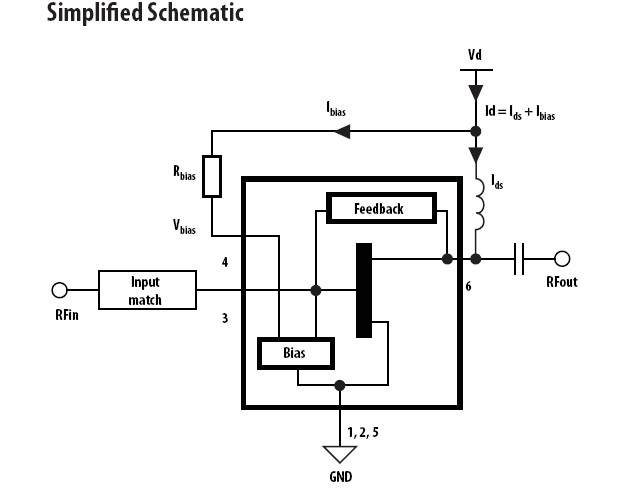

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MGA-82563-TR1 |
|
IC AMP MMIC GAAS 3V SOT-363 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MGA-82563-TR1G |
Avago Technologies |
RF Amplifier 3 SV 13.2 dB |
Data Sheet |
|
|
||||||||||||
