Product Summary

The MIC2779L-1BM5 is a voltage monitor. It is designed to detect two separate voltage thresholds-combined with a delay generator and logic. It is designed for monitoring the battery supply of portable digital systems, particularly PDAs, pagers, and cellular telephones. The applications of the MIC2779L-1BM5 are PDAs, Pagers, Cordless phones, Consumer electronics, Embedded controllers, Personal electronics.

Parametrics

MIC2779L-1BM5 absolute maximum ratings: (1)Supply Voltage (VDD): -0.3V to +7V; (2)Input Voltage (VIN): -0.3V to +7V; (3)RST, (/RST)Current: 20mA; (4)Storage Temperature (TS): -65°C to +150°C; (5)ESD Rating: 2kV.

Features

MIC2779L-1BM5 features: (1)Optimized for PDAs, cellular telephones, pagers, and other battery-powered devices; (2)Independently adjustable high- and low-voltage thresholds; (3)Internal logic prevents battery-voltage-fluctuation chatter; (4)High ±2% voltage threshold accuracy; 1% available; (5)Built in 140ms (minimum)delay deglitches output; (6)Extremely low 1μA typical supply current; (7)For applications requiring open-drain output, see MIC2778/MIC833; (8)Immune to brief power supply transients; (9)5-pin SOT-23 package.

Diagrams

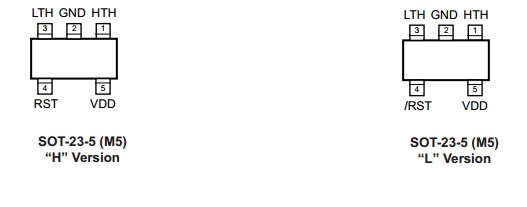

MIC2779L-1BM5 pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MIC2779L-1BM5 TR
MIC2779L-1BM5 TR

IC SUPERVISOR ADJ HYSTER SOT23-5
Data Sheet
Negotiable
