Product Summary
The MIC5200-5.0 is a 100mA low-dropout regulator. It is designed especially for hand-held battery powered devices, and the MIC5200-5.0 is switched by a CMOS or TTL compatible logic signal. Its applications include cellular telephones, laptop, notebook, and palmtop computers, PCMCIA VCC and VPP regulation/switching, bar code scanners, SMPS post-regulator/DC to DC modules, high efficiency linear power supplies.
Parametrics
MIC5200-5.0 absolute maximum ratings: (1)power dissipation: internally limited; (2)lead temperature: 260℃; (3)operating junction temperature range: -40 to 125℃; (4)thermal characteristics: 15℃/W; (5)enable input voltage: -20 to 60V.
Features
MIC5200-5.0 features: (1)high output voltage accuracy; (2)variety of output voltages; (3)guaranteed 100mA output; (4)low quiescent current; (5)low dropout voltage; (6)very low temperature codfficient; (7)zero OFF mode current; (8)logic-controlled electronic shutdown; (9)available in 8-lead SOIC, MM8 8-lead MSOP, and SOT-223 packages.

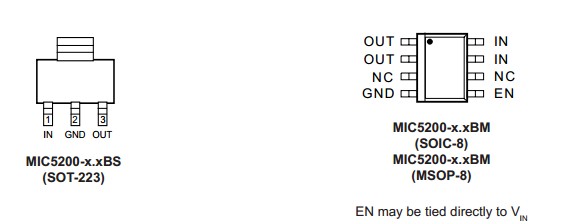

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC5200-5.0BM |
|
IC REG LDO 5V .1A 8SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
MIC5200-5.0BM TR |
|
IC REG LDO 5V .1A 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
MIC5200-5.0BS TR |
|
IC REG LDO 5V .1A SOT223 |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
MIC5200-5.0BS |
|
IC REG LDO 5V .1A SOT223 |
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
MIC5200-5.0BMM TR |
|
IC REG LDO 5V .1A 8-MSOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
MIC5200-5.0BMM |
|
IC REG LDO 5V .1A 8-MSOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
MIC5200-5.0YS TR |
|
IC REG LDO 5V .1A SOT223 |
Data Sheet |
|
|
||||||||||||||||||
|
MIC5200-5.0YS |
|
IC REG LDO 5V .1A SOT-223 |
Data Sheet |
|
|
||||||||||||||||||
