PIC16LC926-I/PT

68-Pin CMOS Microcontroller, TQFP64, 25 mA, 0V to +7.5V, PIC16LC926-I/PT

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~100.00

PartNumber:: PIC16LC926-I/PT

Brand:: Microchip Technology - Microchip | Pack: TQFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jolin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-02

From Other Seller

Part Number:PIC16LC926-I/PT
US $0.01 - 100.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

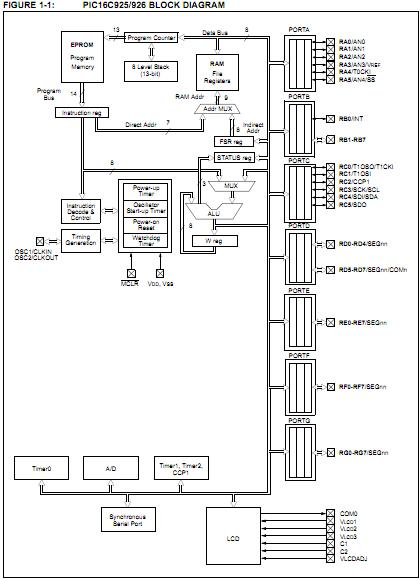

The PIC16LC926-I/PT is a 68-Pin CMOS Microcontroller with LCD Driver. It comes in 68-pin package, as well as die form. Both configurations offer identical peripheral devices and other features.

Parametrics

PIC16LC926-I/PT absolute maximum ratings: (1)Ambient temperature under bias: -55 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR, and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: 0V to +7.5V; (5)Voltage on MCLR with respect to VSS: 0V to +13.25V; (6)Voltage on RA4 with respect to VSS: 0V to +8.5V; (7)Voltage on VLCD2, VLCD3 with respect to VSS: 0V to +10V; (8)Total power dissipation: 1.0 W; (9)Maximum current out of VSS pin: 300 mA; (10)Maximum current into VDD pin: 250 mA; (11)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (12)Output clamp current, IOK (VO < 0 or VO > VDD): ± 20 mA; (13)Maximum output current sunk by any I/O pin: 25 mA; (14)Maximum output current sourced by any I/O pin: 25 mA; (15)Maximum current sunk by all Ports combined: 200 mA; (16)Maximum current sourced by all Ports combined: 200 mA.

Features

PIC16LC926-I/PT features: (1)Power-on Reset (POR); (2)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (3)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (4)Programmable code protection; (5)Selectable oscillator options; (6)In-Circuit Serial Programming (ICSP) via two pins; (7)Processor read access to program memory.
