Product Summary

The UPSD3234A-40U is a flash programmable system device which combines a fast 8051-based microcontroller with a flexible memory structure, programmable logic, and a rich peripheral mix including USB, to form an ideal embedded controller. At its core is an industry-standard 8032 MCU operating up to 40MHz.

Parametrics

UPSD3234A-40U absolute maximum ratings: (1)Storage Temperature: –65 125℃ ; (2)Lead Temperature during Soldering (20 seconds max.)(1): 235℃ ; (3)Input and Output Voltage (Q = VOH or Hi-Z): –0.5 to 6.5 V; (4)Supply Voltage: –0.5 to 6.5 V; (5)Device Programmer Supply Voltage: –0.5 to 14.0 V; (6)Electrostatic Discharge Voltage (Human Body Model)(2):–2000 to 2000 V.

Features

UPSD3234A-40U features: (1)Fast 8-bit 8032 MCU; (2)Dual flash memories with memory management; (3)Clock, reset, and supply management; (4)Programmable logic, general purpose; (5)Communication interfaces; (6)JTAG in-system programming; (7)A/D converter; (8)Timers and interrupts; (9)Single supply voltage.

Diagrams

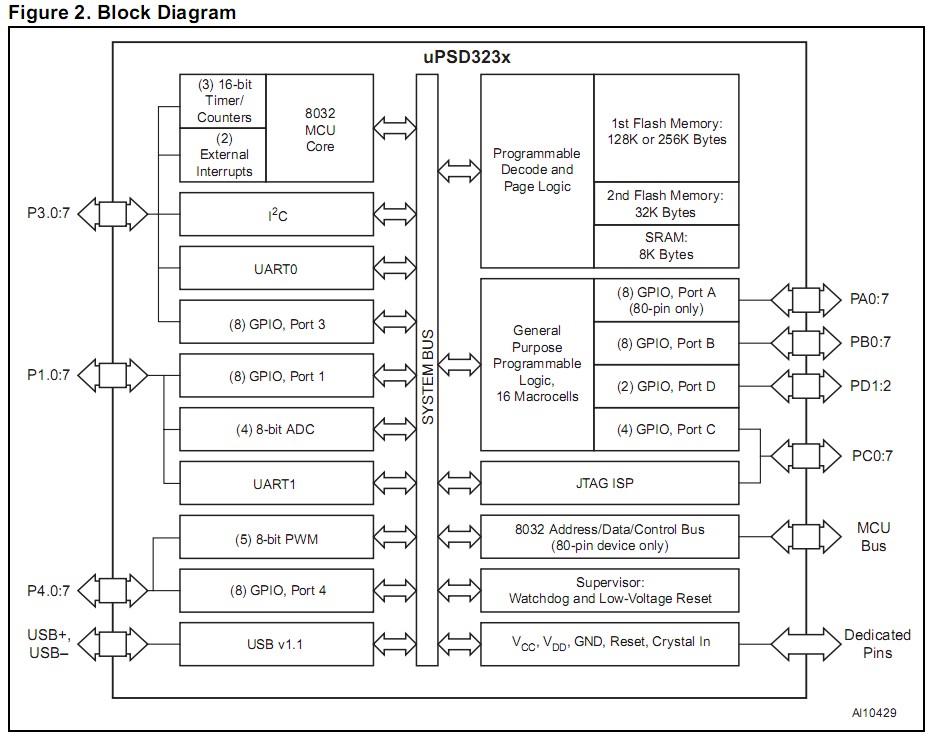

UPSD3234A-40U pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

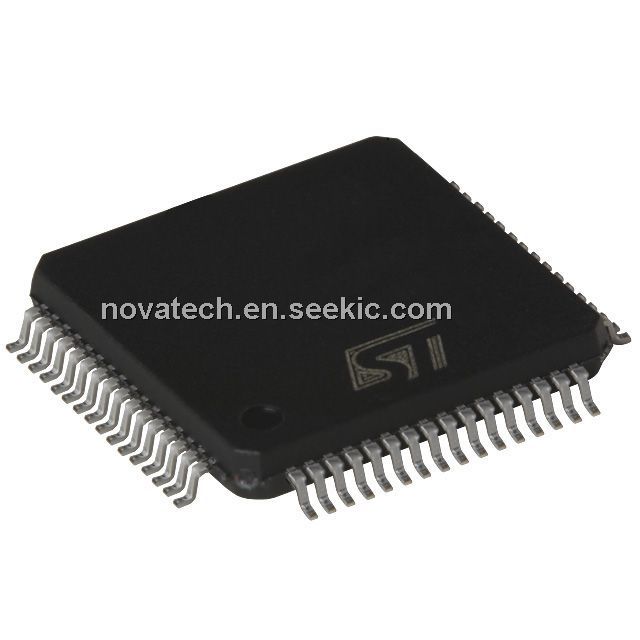

UPSD3234A-40U6
UPSD3234A-40U6

STMicroelectronics

8-bit Microcontrollers (MCU) 5.0V 2M 40MHz

Data Sheet

Negotiable
UPSD3234A-40U6T
UPSD3234A-40U6T

STMicroelectronics

8-bit Microcontrollers (MCU) Flash Programmable System Devices

Data Sheet

Negotiable
