Product Summary
The DS1810R-5 is a 5V EconoReset with Push-Pull Output. The DS1810R-5 EconoReset uses a precision temperature reference and comparator circuit to monitor the status of the power supply (VCC). When an out-of-tolerance condition is detected, an internal power-fail signal is generated which forces reset to the active state. When VCC returns to an in-tolerance condition, the reset signal is kept in the active state for approximately 150 ms to allow the power supply and processor to stabilize.
Parametrics
DS1810R-5 absolute maximum ratings: (1)Voltage on VCC Pin Relative to Ground -0.5V to +7.0V; (2)Voltage on RST Relative to Ground -0.5V to VCC +0.5V; (3)Operating Temperature -40 to +85℃; (4)Storage Temperature -55 to +125℃; (5)Soldering Temperature 260℃ for 10 seconds.
Features
DS1810R-5 features:(1)Automatically restarts a microprocessor after power failure; (2)Maintains reset for 150 ms after VCC returns to an in-tolerance condition; (3)Reduces need for discrete components; (4)Precision temperature-compensated voltage reference and voltage sensor; (5)Low-cost TO-92 or space saving surface mount SOT-23 packages available; (6)Push-Pull output for low current operation; (7)Operating temperature -40 to +85℃.

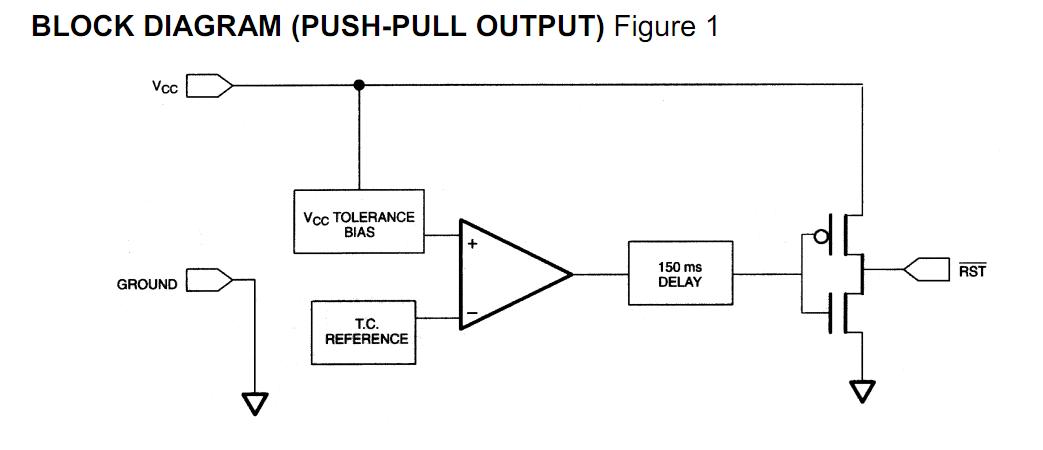

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DS1810R-5/T&R |
Maxim Integrated Products |
Supervisory Circuits 5V EconoReset w/Push Pull Output |
Data Sheet |
|
|
|||||||||||
DS1810R-5+T&R |
Maxim Integrated Products |
Supervisory Circuits 5V EconoReset w/Push Pull Output |
Data Sheet |
|
|
|||||||||||
DS1810R-5+T&R-W |
Maxim Integrated Products |
Supervisory Circuits 5V EconoReset w/Push Pull Output |
Data Sheet |
|
|
|||||||||||
DS1810R-5-U |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
|||||||||||
DS1810R-5-U+ |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
