Product Summary
The LT1084 positive adjustable regulator is designed to provide 3A, 5A and 7.5A with higher efficiency than currently available device. All internal circuitry is designed to operate down to 1V input to output differential and the dropout voltage is fully specified as a function of load current.
Parametrics
LT1084 absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Input Voltage:30V; (3)Operating Junction Temperature Range, Control Section: 0℃ to 125℃; (4)Operating Junction Temperature Range, Power Transistor: 0℃ to 150℃; (5)Storage Temperature Range: -65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1084 features: (1)Three-Terminal 3.3V, 3.6V, 5V and 12V; (2)Output Current of 3A, 5A or 7.5A; (3)Operates Down to 1V Dropout; (4)Guaranteed Dropout Voltage at Multiple Current Levels; (5)Line Regulation: 0.015%; (6)Load Regulation: 0.1%; (7)100% Thermal Limit Functional Test; (8)Adjustable Versions Available.

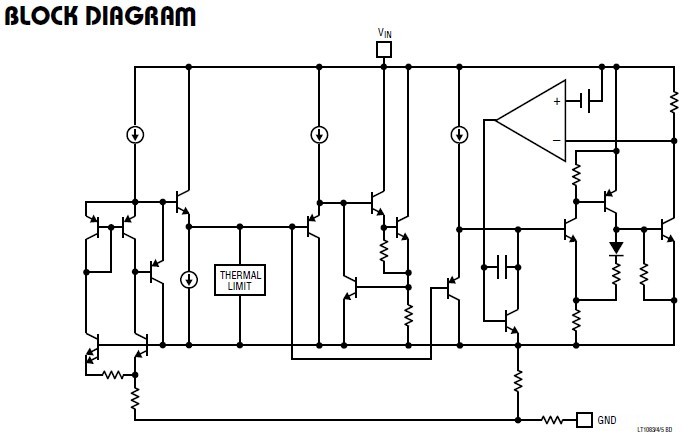

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() LT1084 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||
![]() |
![]() LT1084-3.3 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||
![]() |
![]() LT1084CP#PBF |
![]() |
![]() IC REG LDO ADJ 5A TO-3P-3 |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() LT1084CP |
![]() |
![]() IC REG LDO ADJ 5A TO-3P-3 |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() LT1084CK-12 |
![]() Linear Technology |
![]() IC LDO REG 5A 12V TO-3-2 |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||
![]() |
![]() LT1084CK-5 |
![]() Linear Technology |
![]() IC LDO REG 5A 5V TO-3-2 |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||
![]() |
![]() LT1084CP-12#PBF |
![]() |
![]() IC REG LDO 12V 5A TO-3P-3 |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() LT1084CP-12 |
![]() |
![]() IC REG LDO 12V 5A TO-3P-3 |
![]() Data Sheet |
![]()
|
|
