Product Summary
The MAX4212EUK+T is a single op amp that combines high-speed per-formance with Rail-to-Rail outputs. The device operates from a 3.3V to 10V single supply or from ±1.65V to ±5V dualsupplies. The normal-mode input voltage rangeextends beyond the negative power-supply rail (groundin single-supply applications). The MAX4212EUK+T requires only 5.5mA of quiescent supply current while achieving a 300MHz -3dB bandwidth anda 600V/μs slew rate. Input-voltage noise is only10nV/Hz and input-current noise is only 1.3pA/Hz foreither the inverting or noninverting input. These partsare an excellent solution in low-power/low-voltage sys-tems that require wide bandwidth, such as video, com-munications, and instrumentation.
Parametrics
MAX4212EUK+T absolute maximum ratings: (1)Supply Voltage (VCC to VEE): 12V; (2)IN_-, IN_+, OUT_, EN_: (VEE - 03V) to (VCC + 03V); (3)Output Short-Circuit Duration to VCC or VEE: Continuous; (4)Continuous Power Dissipation (TA = +70°C); (5)5-Pin SOT23 (derate 71mW/°C above +70°C): 571mW; (6)8-Pin SO (derate 59mW/°C above +70°C): 471mW; (7)8-Pin μMAX (derate 45mW/°C above +70°C): 221mW; (8)14-Pin SO (derate 83mW/°C above +70°C): 667mW; (9)16-Pin QSOP (derate 83mW/°C above +70°C): 667mW; (10)Operating Temperature Range: -40°C to +85°C; (11)Storage Temperature Range: -65°C to +150°C; (12)Lead Temperature (soldering, 10s): +300°C
Features
MAX4212EUK+T features: (1)High Speed:300MHz -3dB Bandwidth (MAX4212/MAX4213)200MHz -3dB Bandwidth(MAX4216/MAX4218/MAX4220)50MHz 0.1dB Gain Flatnes (MAX4212/MAX4213)600V/μs Slew Rate; (2)Single 3.3V/5.0V Operationo Rail-to-Rail Outputs; (3)Input Common-Mode Range Extends Beyond VEE; (4)Low Differential Gain/Phase: 0.02%/0.02°; (5)Low Distortion at 5MHz:-78dBc SFDR-75dB Total Harmonic Distortion; (6)High-Output Drive: ±100mAo 400μA Shutdown Capability (MAX4213/MAX4218); (7)High-Output Impedance in Off State(MAX4213/MAX4218); (8)Space-Saving SOT23, μMAX, or QSOP Packages

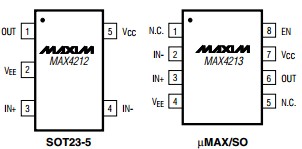

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX4212EUK+T |
Maxim Integrated Products |
High Speed Operational Amplifiers Miniature 300MHz Single-Supply R-R |
Data Sheet |
|
|
|||||||||||||
