MAX483

Product Summary

The MAX483 is a low-power transceiver for RS-485 and RS- 422 communication. Each part contains one driver and one receiver. The device features reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. The device draws between 120μA and 500μA of supply current when unloaded or fully loaded with disabled drivers. In addition, the MAX483 has a low-current shutdown mode in which they consume only 0.1μA. All parts operate from a single 5V supply. The applications of the MAX483 include Low-Power RS-485 transceivers, low-power RS-422 transceivers, level translators transceivers for EMI-sensitive applications.

Parametrics

MAX483 absolute maximum ratings: (1)Supply Voltage (VCC): 12V; (2)Control Input Voltage (RE, DE): -0.5V to (VCC + 0.5V); (3)Driver Input Voltage (DI): -0.5V to (VCC + 0.5V); (4)Driver Output Voltage (A, B): -8V to +12.5V; (5)Receiver Input Voltage (A, B): -8V to +12.5V; (6)Receiver Output Voltage (RO): -0.5V to (VCC +0.5V); (7)Continuous Power Dissipation (TA = +70℃: 727mW; (8)Operating Temperature Ranges: 0 to +70℃; (9)Storage Temperature Range: -65 to +160℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX483 features: (1)For Fault-Tolerant Applications:MAX3430: ±80V Fault-Protected, Fail-Safe, 1/4 Unit Load, +3.3V, RS-485 Transceiver; MAX3440E.MAX3444E: ±15kV ESD-Protected, ±60V Fault-Protected, 10Mbps, Fail-Safe, RS-485/J1708 Transceivers; (2)For Space-Constrained Applications: MAX3460.MAX3464: +5V, Fail-Safe, 20Mbps, Profibus RS-485/RS-422 Transceivers; MAX3362: +3.3V, High-Speed, RS-485/RS-422 Transceiver in a SOT23 Package; MAX3280E.MAX3284E: ±15kV ESD-Protected, 52Mbps, +3V to +5.5V, SOT23, RS-485/RS-422, True Fail-Safe Receivers; MAX3293/MAX3294/MAX3295: 20Mbps, +3.3V, SOT23, RS-855/RS-422 Transmitters; (3)For Multiple Transceiver Applications: MAX3030E.MAX3033E: ±15kV ESD-Protected, +3.3V, Quad RS-422 Transmitters; (4)For Fail-Safe Applications: MAX3080.MAX3089: Fail-Safe, High-Speed (10Mbps), Slew-Rate-Limited RS-485/RS-422 Transceivers; (5)For Low-Voltage Applications: MAX3483E/ MAX3485E/ MAX3486E/ MAX3488E/ MAX3490E/ MAX3491E: +3.3V Powered, ±15kV ESD-Protected, 12Mbps, Slew-Rate-Limited, True RS-485/RS-422 Transceivers.

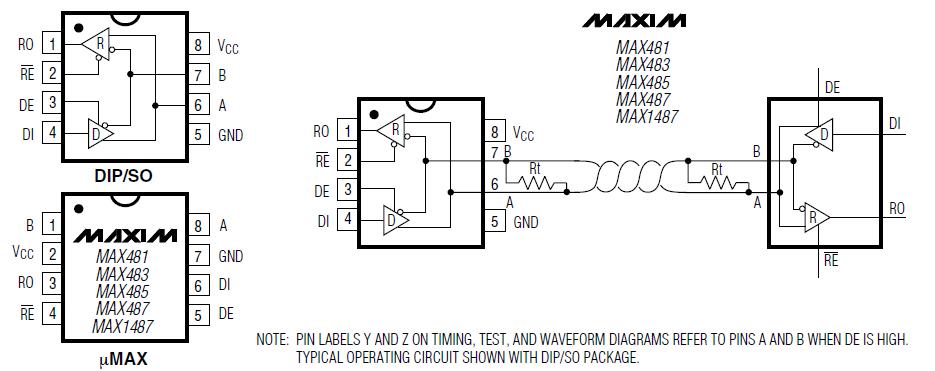

Diagrams
